صفحه اصلی > محصولات > Stainless Steel Coil Tubing > Seamless Stainless Steel Coiled Tubing JIS SUS304L Sch10s

Seamless Stainless Steel Coiled Tubing JIS SUS304L Sch10s

جزئیات محصول

محل منبع: ونژو، چین

نام تجاری: ZHE HENG

گواهی: BV, PED, ISO9001

Model Number: JIS SUS304L/ASMT 304L

Document: بروشور محصول PDF

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش: 500 کیلوگرم

قیمت: $1000-4200/Ton

Packaging Details: As to clients' requirements,Wooden Cases,Bundle Packin

زمان تحویل: 30-45 روز کاری

شرایط پرداخت: L/C ، T/T ، D/P ، D/A

قابلیت ارائه: 1000+

بهترین قیمت رو بدست بیار
برجسته کردن:

seamless stainless steel coiled tubing,JIS SUS304L stainless steel tubing,Sch10s stainless steel tubing

,

JIS SUS304L stainless steel tubing

,

Sch10s stainless steel tubing

نام اصطلاح:
لوله کویل فولادی ضد زنگ
Material Grade:
JIS SUS304L,ASMT 304L
شکل:
لوله گرد، لوله مربع، لوله مستطیل
تکنیک:
نورد سرد
Length:
35000mm Or 12000mm
اندازه:
Sch10s-Sch80s
نوع خط جوش:
بدون درز/جوش داده شده
نام اصطلاح:
لوله کویل فولادی ضد زنگ
Material Grade:
JIS SUS304L,ASMT 304L
شکل:
لوله گرد، لوله مربع، لوله مستطیل
تکنیک:
نورد سرد
Length:
35000mm Or 12000mm
اندازه:
Sch10s-Sch80s
نوع خط جوش:
بدون درز/جوش داده شده
Seamless Stainless Steel Coiled Tubing JIS SUS304L Sch10s

Product Description



Overview:

JIS SUS304L (UNS S30403) is the most widely used "18-8" chromium-nickel austenitic stainless steel. It is an economical and versatile corrosion resistant alloy suitable for a wide range of general purpose applications.







Specification:

Material Grade

America Standard S30100,S30200,S30300,S30323,S30400,S30403,S31000,S31008,S31600,S31603,S31635,S31700,S32100
Japan Standard SUS202,SUS301,SUS302,,SUS304,SUS304L,SUS305,SUH309,SUS309S,SUH310,SUS310S,SUS316
Europen Standard 1.431,1.43,1.4305,1.4301,1.4306,1.4303,1.4828,1.4841,1.4845,1.4401,1.4404,1.4571,1.4436,1.4541








Outside Diameter OD 0.28-1219mm
Thickness 0.08-100mm
Seamless Stainless Steel Pipes 1/8“NB to 32“NB IN
Production Process Cold Drawn,Bright Anneal.etc
Type Seamless,welded
Surface Pickling,Bright;
Price Item EXW,FOB,CNF,CIF etc
Application
1.Chemical engineering
2.Machine
3.Corpuscle
4.Electricity
5.Spin
6.Rubber
7.Food
8.Communication
9.Petroleum



Ends: Beveled or plain end, square cut, burr free







Stainless Steel Seamless Pipe Chemical Component:

Chemical Composition about stainless steel pipe
Grade C ≤ Si ≤ Mn ≤ P ≤ S ≤ Ni ≤ Cr ≤
304L 0.035 0.75 2 0.045 0.03 8.00-13.00 18.00-20.00







Size table:

Seamless stainless steel pipes

WALL THCKNESS FOR STAINLESS STEEL PIPE &T UBE (ASME B36.10 & B36.19)
DNmm DNin φmm SCH5S SCH10S SCH40S STD Sch40 Sch60 Sch80s XS Sch80 Sch120 Sch140 Sch160 XXS
6 1/8 10.3   1.24 1.73 1.73 1.73   2.41 2.41 2.41
8 1/4 13.7   1.65 2.24 2.24 2.24   3.02 3.02 3.02
10 3/8 17.1   1.65 2.31 2.31 2.31   3.2 3.2 3.2
15 1/2 21.3 1.65 2.11 2.77 2.77 2.77   3.73 3.73 3.73     4.78 7.47
20 3/4 26.7 1.65 2.11 2.87 2.87 2.87   3.91 3.91 3.91     5.56 7.82
25 1 33.4 1.65 2.77 3.38 3.38 3.38   4.55 4.55 4.55     6.35 9.09
32 1 1/4 42.2 1.65 2.77 3.56 3.56 3.56   4.85 4.85 4.85     6.35 9.7
40 1 1/2 48.3 1.65 2.77 3.68 3.68 3.68   5.08 5.08 5.08     7.14 10.15
50 2 60.3 1.65 2.77 3.91 3.91 3.91   5.54 5.54 5.54     8.74 11.07
65 2 1/2 76 2.11 3.05 5.16 5.16 5.16   7.01 7.01 7.01     9.53 14.02
80 3 88.9 2.11 3.05 5.49 5.49 5.49   7.62 7.62 7.62     11.13 15.24
90 3 1/2 101.6 2.11 3.05 5.74 5.74 5.74   8.08 8.08 8.08
100 4 114.3 2.11 3.05 6.02 6.02 6.02   8.56 8.56 8.56 11.13   13.49 17.12
125 5 141.3 2.77 3.4 6.55 6.55 6.55   9.53 9.53 9.53 12.7   15.88 19.05
150 6 168.3 2.77 3.4 7.11 7.11 7.11   10.97 10.97 10.97 14.27   18.26 21.95
200 8 219.1 2.77 3.76 8.18 8.18 8.18 10.31 12.7 12.7 12.7 18.26 20.62 23.01 22.23
250 10 273 3.4 4.19 9.27 9.27 9.27 12.7 12.7 12.7 15.09 21.44 25.4 28.58 25.4
300 12 323.8 3.96 4.57 9.53 9.53 10.31 14.27 12.7 12.7 17.48 25.4 28.58 33.32 25.4
350 14 355.6 3.96 4.78   9.53 11.13 15.09   12.7 19.05 27.79 31.75 35.71
400 16 406.4 4.19 4.78   9.53 12.7 16.66   12.7 21.44 30.96 36.53 40.49
450 18 457 4.19 4.78   9.53 14.27 19.05   12.7 23.83 34.93 39.67 45.24
500 20 508 4.78 5.54   9.53 15.09 20.62   12.7 26.19 38.1 44.45 50.01
550 22 559 4.78 5.54   9.53   22.23   12.7 28.58 41.28 47.63 53.98
600 24 610 5.54 6.35   9.53 17.48 24.61   12.7 30.96 46.02 52.37 59.54
650 26 660       9.53       12.7
700 28 711       9.53       12.7
750 30 762 6.35 7.92   9.53       12.7
800 32 813       9.53 17.48     12.7

Conforms to ANSI B36.19 and ANSI B36.10 standards

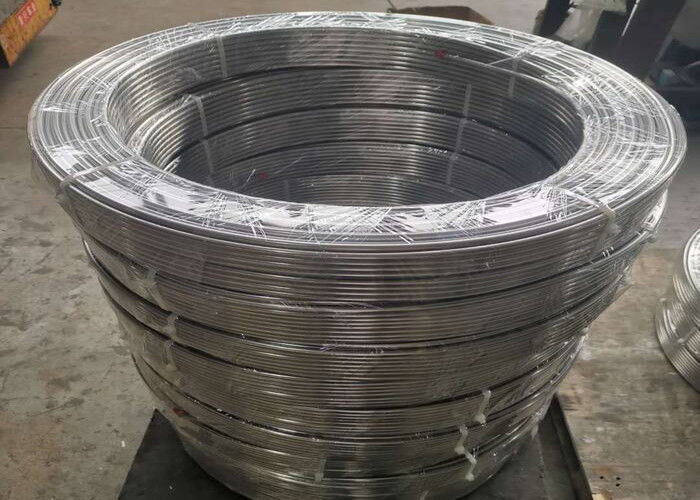

Seamless Stainless Steel Coiled Tubing JIS SUS304L Sch10s 0

Seamless Stainless Steel Coiled Tubing JIS SUS304L Sch10s 1







FAQ:
Q: Are you a manufacturer or merely a trader?
A: We are group of companies and owned manufacturer bases and trading company. We specialized in special steel which include alloy structural steel and carbon steel and stainless steel, etc. All material are with high quality and competitive price.
Q: How do you guarantee the quality of your product?
A: Firstly, we can provide the certificates from the third party, such as TUV, CE, if you need. Secondly, we have a complete set of inspection system and every process is checked by QC. Quality is the lifeline of enterprise survival.
Q: Delivery time?
A: We have ready stock for most of material grades in our warehouse. If the material don't have stock, the delivery lead time is about 5-30 days after receiving your prepayment or firm order.
Q: What is the payment term?
A: T/T or L/C.
Q: Can you provide a sample for our testing before confirm the order?
A: Yes. We can provide sample to you for approval before you place an order to us. Free sample is available if we have stock.
Q: Can we visit your company and factory?
A: Yes, warmly welcome! We can book the hotel for you before you come to China and arrange our driver to our airport to pick you up when you come.
