ASME B16.5 F304 Stainless Steel Flange 150LBS Forged WN

Name: ASME B16.5 F304 Stainless Steel Flange 150LBS Forged WN
Brand: Wenzhou Zheheng Steel Industry Co.,Ltd
SKU: فلنج گردن جوش
Price: 3,750.00 USD
Availability: InStock

جزئیات محصول

محل منبع: ونژو، چین

نام تجاری: Zheheng

گواهی: ISO9001:2008

شماره مدل: فلنج گردن جوش

Document: بروشور محصول PDF

شرایط پرداخت و حمل و نقل

Minimum Order Quantity: 500KG per Month

جزئیات بسته بندی: در موارد چوبی یا پالت، یا برای نیاز مشتری

زمان تحویل: 7-15 روز کاری پس از دریافت پرداخت

شرایط پرداخت: L/C، D/A، D/P، T/T، Western Union

قابلیت ارائه: 1000 تن/تن در ماه

بهترین قیمت رو بدست بیار

جزئیات محصول

توضیحات محصول

برجسته کردن:
                                                                                                                                                                                                                                                                                                                                                                                F304 Stainless Steel Flange,Stainless Steel Forged WN Flange,ASME B16.5 Stainless Steel Flange, Stainless Steel Forged WN Flange, ASME B16.5 Stainless Steel Flange


Keywords:	stainless steel WN flange	فنی:	آهنگری
اندازه:	1/2 "-24"	استفاده:	خط لوله ها به هم وصل میشن
Standard:	ASME,SH,DIN	Material:	317/L,304/L,316/L,310/S
سطح:	روغن ضد زنگ، لاک شفاف	اتصال:	جوشکاری ، نخ
ماده قیمت:	EXW، FOB، CIF، CFR	Pressure:	150LBS~2500LBS

Keywords:	stainless steel WN flange
فنی:	آهنگری
اندازه:	1/2 "-24"
استفاده:	خط لوله ها به هم وصل میشن
Standard:	ASME,SH,DIN
Material:	317/L,304/L,316/L,310/S
سطح:	روغن ضد زنگ، لاک شفاف
اتصال:	جوشکاری ، نخ
ماده قیمت:	EXW، FOB، CIF، CFR
Pressure:	150LBS~2500LBS

ASME B16.5 F304 Stainless Steel Flange 150LBS Forged WN

Overview

Welding neck flanges mainly have higher necks, which improves the rigidity and bearing capacity of the flanges. The purpose is to transfer the pressure of the pipeline, thereby reducing the damage to the flange, and is suitable for occasions with high pressure and temperature. The main production processes by our company are all forged, Flange density, the possibility of leakage is small , Welding neck flange is more convenient for on-site installation, and can omit the process of welding and scratching.

Specification

Material	Carbon,Alloy and Stainless Steel
Standard	ASME B16.5,SH3406,DIN2576/27/66,DIN2632-2638
Material Grade	309/S,347/H,321/321H,904/L,S32750/F53/2507,S32205/F60 S31803/F51
Size	DN10-DN800
Thickness	Schedule 10(S) to SCH 160
Face Type	FF,RF,RTJ,GF,TF

Application

1.Preferred for high-pressure, subzero or elevated temperature.

2.Hub is tapered and bored to match pipe’s inside diameter so flow is not restricted, preventing turbulence and reducing erosion.

3.Easily radiographed and provides excellent stress distribution.

Advantage

1.Butt welded flange has the characteristics of easy deformation ,good sealing.

2. It has corresponding rigidity and elasticity.

3.The distance between the weld and the joint surface is large, and the joint surface will not be deformed because of the welding temperature, so it is widely used in the welding of pipelines.

Chemical composition

Grade	C	Mn	P	S	Si	Ni	Cr
F304	0.08	2	0.045	0.03	1	8.0 - 11.0	18.0 - 20.0

Mechanical propcrties

Mechanical Properties
Gr.	Tensile Strength (MPa) minimum	Yield Strength 0.2% Proof (MPa) minimum	Elongation (% in 50mm) minimum	Hardness
				Rockwell B(HR B) max	Brinell (HB) max
F304	515	205 C	40	92	201

Shipping

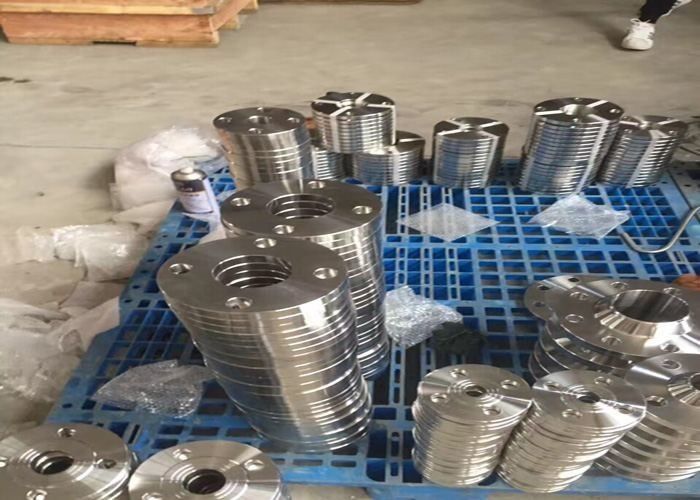

ASME B16.5 F304 Stainless Steel Flange 150LBS Forged WN 0

PS:We also use plywood cases to package our flange,reduce road bumps and get goods to customers ely.
