ASME B16.9 Stainless Steel Straight Reducing Tees TP310S For Chemical Industry

Name: ASME B16.9 Stainless Steel Straight Reducing Tees TP310S For Chemical Industry
Brand: Wenzhou Zheheng Steel Industry Co.,Ltd
SKU: توری
Price: 3,750.00 USD
Availability: InStock

جزئیات محصول

محل منبع: ونژو، چین

نام تجاری: Zheheng

گواهی: ISO9001

شماره مدل: توری

Document: بروشور محصول PDF

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش: بیش از 5 عدد

Delivery Time: 10-15 days for bulk, 3-5 working days for inventory.

شرایط پرداخت: T/T، L/C، Western Union

بهترین قیمت رو بدست بیار

جزئیات محصول

توضیحات محصول

برجسته کردن:
                                                                                                                                                                                                                                                                                                                ASME B16.9 stainless steel reducing tees,stainless steel straight reducing tees,TP310S stainless reducing tees, stainless steel straight reducing tees, TP310S stainless reducing tees


اتصال:	مرد	بسته بندی:	در جعبه ها یا پالت های چوبی، یا مطابق با نیاز مشتری
Application:	Petroleum,chemical,machinery,boiler	Size:	Welded 1/2"-48",DN15-1200 seamless 1/2''-24(DN15-DN600）
Product name:	Stainless steel straight/reducing tees	مواد:	فولاد ضد زنگ
دیوار بدون ضخامت:	Sch5s-Sch160	Tolerance:	±2%,±3%,

اتصال:	مرد
بسته بندی:	در جعبه ها یا پالت های چوبی، یا مطابق با نیاز مشتری
Application:	Petroleum,chemical,machinery,boiler
Size:	Welded 1/2"-48",DN15-1200 seamless 1/2''-24(DN15-DN600）
Product name:	Stainless steel straight/reducing tees
مواد:	فولاد ضد زنگ
دیوار بدون ضخامت:	Sch5s-Sch160
Tolerance:	±2%,±3%,

ASME B16.9 Stainless Steel Straight Reducing Tees TP310S For Chemical Industry

Product description

Stainless steel tee is an important element used in piping systems. They are commonly used on branch lines to distribute water or other fluids from one main line to two or more branch lines. Stainless steel tee plays an important role in industry and home, and its main role is to strengthen the connectivity and stability of the pipeline system.

Chemical Composition Of ASME B16.9 TP310S TEES

Cr	C≤	Mn≤	Si≤	S≤	P≤	Ni	Mo
24.00-26.00	0.25	2.00	1.00	0.03	0.045	19.00-22.00

ASME B16.9 TP310S TEES Mechanical propcrties

Grade	Tensile strength (MPa)	Elongation (% in 50mm)	Yield strength 0.2% proof (MPa)	Hardness≤
310s	655	45	310	85

Application

Chemical processing
Petroleum
Pulp/paper
Refining
Textile
Waste treatment, Marine
Utilities/power generation
Industrial equipment
Automotive
Gas compression and distribution industries Pipe Tees are also recommended for industrial plant fluid power systems.

ASME B16.9 TP310S Tee Size Referance

ASME B16.9 Stainless Steel Straight Reducing Tees TP310S For Chemical Industry 0

Nominal Pipe Size (NPS)	Outside Diameter at Bevel	Center-to-End
		Run, C	Outlet,
			M
			[Notes ⑴ and ⑵]
1/2”	21.3	25	25
3/4”	26.7	29	29
1	33.4	38	38
1-1/4”	42.2	48	48
1-1/2”	48.3	57	57
2	60.3	64	64
2-1/2”	73	76	76
3	88.9	86	86
3-1/2”	101.6	95	95
4	114.3	105	105
5	141.3	124	124
6	168.3	143	143
8	219.1	178	178
10	273	216	216
12	323.8	254	254
14	355.6	279	279
16	406.4	305	305
18	457	343	343
20	508	381	381
22	559	419	419
24	610	432	432
26	660	495	495
28	711	521	521
30	762	559	559
32	813	597	597
34	864	635	635
36	914	673	673
38	965	711	711
40	1 016	749	749
42	1 067	762	711
44	1 118	813	762
46	1 168	851	800
48	1 219	889	838

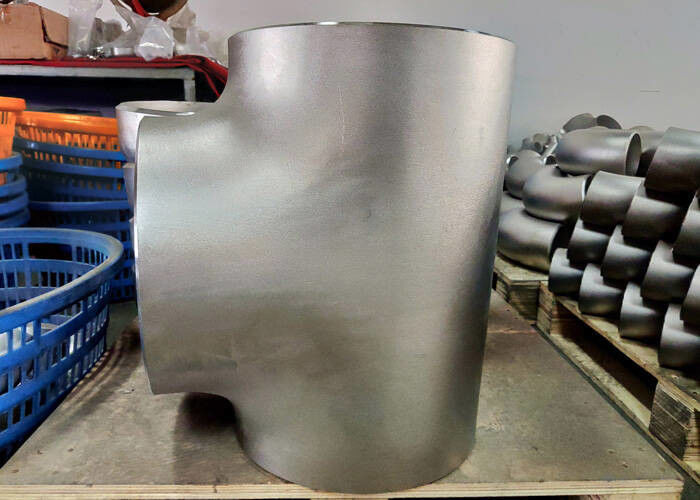

product image

ASME B16.9 Stainless Steel Straight Reducing Tees TP310S For Chemical Industry 1
