ATSM A790 Duplex Stainless Steel Pipe 1mm S32003 Chemical Equipment

ATSM A790 Duplex stainless Steel Pipe S32003 Can be used in making chemical equipment

Product Discription:

022Cr21Ni3MoN (S32003)

Containing 1.5% Mo, combined with Cr and N to improve corrosion resistance, its corrosion resistance is better than 022Cr17Ni12Mo2 (316L stainless steel), close to 022Cr19Ni13Mo3 (317L stainless steel), is an ideal substitute for 022Cr17Ni12Mo2 (316L stainless steel). At the same time, the steel also has a high strength, can be used in chemical storage tanks, pulp and paper, building roofs, Bridges and other fields.

Features:

1. High cold deformation plasticity
2. The welding performance of arc welding and contact welding is good

​Duplex stainless steel corrosion resistant. They have strong resistance to inter-granular corrosion. Even in chloride and sulfide environments, duplex stainless steels show very high resistance to stress corrosion cracking. Duplex stainless steel work hardening alloy. Their micro-structure consists of austenitic phase and ferritic phase. Therefore, duplex stainless steel shows the characteristics of austenitic and ferritic stainless steel. This combination of properties may mean some compromise compared to pure austenite and pure ferrite.

Use of S32003 duplex stainless steel:

• S32003 Duplex steel can be used to make chemical equipment, mechanical parts for use in corrosion resistant conditions, bolts and nuts, pressure vessels, etc

The components of S32003 are as follows:

Tensile and Hardness Requirements about the S32003 Duplex steel pipe:

MECHANICAL PROPERTIES FINAL HEAT TREATMENT:

Form: plate,sheet,strip

Tensile strength, σb/MPa: 620

Yield strength, σ0.2/MPa: 450

Elongation, δ(％): 29

Reduction of area, ф(％): -

Hardness | HRC(HBW): 31 (293)

PROFILE AND DIMENSIONS:

Round bar / Wire rod (Diameter): 5.5mm to 500mm

Square bar / Flat bar: 3mm to 650mm

Plate / Sheet steel / Steel strip: 0.1mm to 650mm

Width: 8mm to 1000mm

Length: random length or based on the customer's special requirement.

Forged steel shape: stepped shafts with flanks / discs /tubes /slugs /donuts /cubes /other different shapes based on OEM

About us:

Zheheng Steel is an excellent supplier of stainless steel pipes and other high quality industrial products. The pipeline range provided is manufactured according to national and international raw material quality standards. The industry is offering tubing in a variety of standards, sizes and specifications. According to customer requirements, we can provide various specifications of pipes according to customer requirements. Therefore, buyers can purchase products of different sizes, wall thicknesses, lengths, diameters, etc., according to their needs.

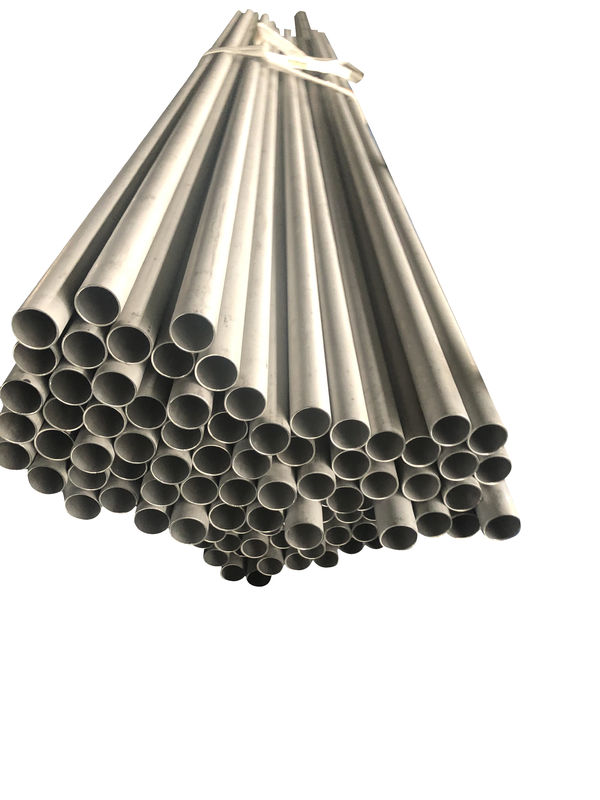

Product show:
