904l S31803 Stainless Steel Seamless Pipe , Stainless Steel Round Tube Sch10

جزئیات محصول

محل منبع: چین

نام تجاری: zheheng

گواهی: ISO9001 PED

شماره مدل: 6 میلی متر - 710 میلی متر

Document: بروشور محصول PDF

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش: قابل مذاکره

قیمت: قابل مذاکره

جزئیات بسته بندی: در بسته های با مواد ضد آب یا بسته بندی جعبه های چوبی

زمان تحویل: 30 روز

شرایط پرداخت: L/C ، T/T ، D/A ، D/P

قابلیت ارائه: 50 تن / 30 روز

بهترین قیمت رو بدست بیار
برجسته کردن:

seamless pipes and tubes,ss seamless pipe

,

ss seamless pipe

مواد:
304
استاندارد:
ASTM a312، 213
شکل:
شکل گرد
تکنیک:
بی درز
برنامه:
درها و ویندوزها
بسته:
بسته بندی بافته شده
مواد:
304
استاندارد:
ASTM a312، 213
شکل:
شکل گرد
تکنیک:
بی درز
برنامه:
درها و ویندوزها
بسته:
بسته بندی بافته شده
904l S31803 Stainless Steel Seamless Pipe , Stainless Steel Round Tube Sch10

304 Stainless Steel Seamless Pipe sch10



304 stainless steel seamless pipe is a hollow long strip of round steel, which is widely used in petroleum, chemical, medical, food, light industry, mechanical instrumentation and other industrial conveying pipelines and mechanical structural components. In addition, when the bending and torsional strength are the same, the weight is light, so it is also widely used in the manufacture of mechanical parts and engineering structures. Also used to produce a variety of conventional weapons, barrels, shells and so on. Steels that are open at both ends and have a hollow section, and whose length is larger than the circumference of the section, can be called steel pipes. When the length is small compared to the perimeter of the section, it can be called a pipe section or a tubular fitting, which are all in the category of pipe products.



1) Product name: stainless steel seamless pipe, stainless steel tube, stainless steel tube, stainless steel tube
2) Product type: stainless steel rolling, perforation, cold drawing, pickling, cold rolling, etc.
3) Processing method: mechanical straight pull, two-roll cold rolling
4) Surface treatment: annealing pickled surface, polished bright surface
5) Production size: outer diameter 10-219mm, wall thickness 1-10mm, length can be cut according to customer requirements
6) Product material: 304,321,316 stainless steel
[304 stainless steel tube]:
1) Product name: stainless steel welded pipe, sanitary grade welded pipe, stainless steel fine drawn pipe, stainless steel cold rolled pipe
3) Processing methods: argon arc welding, plasma welding, in-line annealing
4) Surface treatment: annealing pickled surface, polished bright surface, on-line bright annealing
5) Production size: outer diameter 19-325mm, wall thickness 1-4mm, length can be cut according to customer requirements
6) Product material: 304,321,316 stainless steel


Applications :
Foodstuff, gas, metallurgy, biology, electron, chemical, petroleum, boilers, nuclear, energy, construction field, ships building industry, war and electricity industry, boiler heat exchanger, machiner and hardware fields and medical equipment, fertilizer, etc

stainless steel pipe dimentions

Dimensions for ASME/ANSI Standards               Unit:mm
                    B16.9 B16.28 B36.10
Nominal pipe Size(NPS) Outside Diameter Nominal Wall Thickness
    Sch5s SCH10S Sch20 Sch30 Sch40 STD Sch80 XS Sch160 XXS
8 1/4 13.7 0.54 - 1.65 - 1.85 2.24 2.24 3.02 3.02 - -
10 3/8 17.1 0.675 - 1.65 - 1.85 2.31 2.31 3.20 3.20 - -
15 1/2 21.3 0.84 1.65 2.11 - 2.41 2.77 2.77 3.73 3.73 4.78 7.47
20 3/4 26.7 1.05 1.65 2.11 - 2.41 2.87 2.87 3.91 3.91 5.56 7.82
25 1 33.4 1.32 1.65 2.77 - 2.90 3.38 3.38 4.55 4.55 6.35 9.09
32 1.1/4 42.2 1.66 1.65 2.77 - 2.97 3.56 3.56 4.85 4.85 6.35 9.70
40 1.1/2 48.3 1.90 1.65 2.77 - 3.18 3.68 3.68 5.08 5.08 7.14 10.15
50 2 60.3 2.38 1.65 2.77 - 3.18 3.91 3.91 5.54 5.54 8.74 11.07
65 2.1/2 73.0 2.88 2.11 3.05 - 4.78 5.16 5.16 7.01 7.01 9.53 14.02

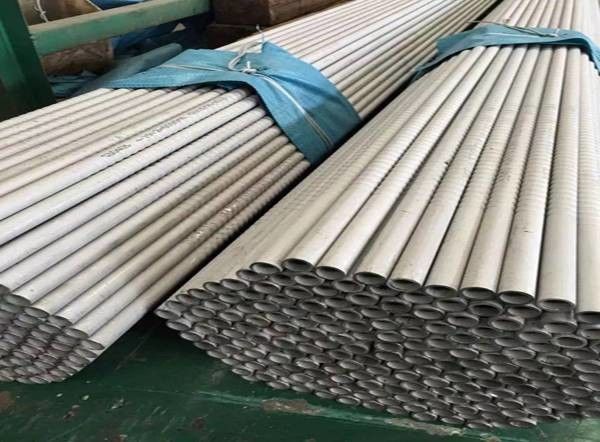

our product show :
904l S31803 Stainless Steel Seamless Pipe , Stainless Steel Round Tube Sch10 0
