304 / 316L Seamless Stainless Steel Tubing Od 8mm / 80mm Flexible ASTM Standard

Name: 304 / 316L Seamless Stainless Steel Tubing Od 8mm / 80mm Flexible ASTM Standard
Brand: Wenzhou Zheheng Steel Industry Co.,Ltd
SKU: 1 اینچ -- 10 اینچ
Price: 2,600.00 USD
Availability: InStock

جزئیات محصول

محل منبع: چین

نام تجاری: zheheng

گواهی: ISO9001 PED

شماره مدل: 1 اینچ -- 10 اینچ

Document: بروشور محصول PDF

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش: قابل مذاکره

قیمت: قابل مذاکره

جزئیات بسته بندی: در بسته های با مواد ضد آب یا بسته بندی جعبه های چوبی

زمان تحویل: 30 روز

شرایط پرداخت: L/C ، T/T ، D/A ، D/P

قابلیت ارائه: 50 تن / 30 روز

بهترین قیمت رو بدست بیار

جزئیات محصول

توضیحات محصول

برجسته کردن:
                                                                                                                                                                                                                                                ss 304 seamless tube,304 stainless steel seamless pipe, 304 stainless steel seamless pipe


ابعاد:	5mm / 6mm od / 8mm / 45mm / 50mm	مواد:	304 / 316L
تکنولوژی:	بی درز	استاندارد:	عید
برنامه:	ماشین آلات	شکل:	گرد

ابعاد:	5mm / 6mm od / 8mm / 45mm / 50mm
مواد:	304 / 316L
تکنولوژی:	بی درز
استاندارد:	عید
برنامه:	ماشین آلات
شکل:	گرد

304 / 316L Seamless Stainless Steel Tubing Od 8mm / 80mm Flexible ASTM Standard

304 /316L steel grade 5mm / 6 mm od / 8mm / 45mm / 50mm / 65mm / 75mm / 80mm stainless steel tube size

Zheheng steel are specialized in produce ss 316,304 stainless steel tube ,size from 6mm,8mm,45mm,50mm,65mm,75mm,80mm stainless steel tube and so on,zheheng steel has win high reputation based on best quality products,are manufactured strictly according to standard ASTM A249-84b, ASTM A269-90A, ASTM A270, ASTM A312, ASTM A688 etc. Top grade quality such as 201, 202, 304, 304L, 316 and 316L are always available in large stock for promptly delivery. It's thickness range from 1.0 to 6.0 mm depend on diverse applications. The dimensions of circle, square, rectangular tube also can be customized. We offer competitive price and processing with best services.

Stainless steel tube are widely used in petroleum, chemical, medical, food,light industry, machinery, instruments and other industrial pipes and mechanical parts etc.

Our Advantages:
1. High-quality products as per certificate ISO 9001: 2008.
2. Good services to satisfy you.
3. Timely delivery for your orders.
4. Samples are available as per your request.

Product Description

Material	201/202/301/302/303/304/304L/304H/304N/309/309S/ 310S/316/316L/316Ti/317317L/321/347/408/409/410/416/420/430 440/620/630 etc
Surface	2B, BA, 8K, 6K, Mirror Finished, No1, No2, No4, Hair Line with PVC etc
Certification	ISO/SGS/BV/IBR/ROHS etc
Outer Diameter	3.5-600mm or as per request
Thickness	0.25-8.0mm or as er request
Length	1-6 meters or as your request
Tube inspection	dimension, horizontal and vertical pressure, reversal flattening, hydrotest, eddy current testing,mechanical performance test, inner surface roughness test, hardness measurement,flaring test,curving test etc
Technical	Hot/Cold rolled, cold drawn
Note	Differernt size,shot blasting and painting,cutting can be supply as per request

Chemical composition

Type AISI	C Max %	Mn Max %	P Max%	S Max%	Si Max%	Cr%	Ni%	Mo%
201	0.15	5.50-7.50	0.06	0.03	1	16.000-18.00	0.5	-
202	0.15	7.50-10.00	0.06	0.03	1	17.00-19.00	3.-0-5.00	-
204CU	0.08	6.5-8.5	0.06	0.03	2	16.0-17.0	1.5-3.0	-
302	0.15	2	0.045	0.03	1	17.00-19.00	8.00-10.00	-
302HQ/	0.03	2	0.045	0.02	1	17.00-19.00	9.00-10.00	-
304CU	0.03	2	0.045	0.02	1	17.00-19.00	9.00-10.00	-
304HC	0.04	0.80-1.70	0.04	0.015	0.3-0.6	18-19	8.5-9.5	-

Dimension Table

No.	Specification(mm)	No.	Specification(mm)
1	φ6*1	23	φ42-45*2.5-4
2	φ8*1	24	φ48-51*2
3	φ10*1	25	φ48-51*3-4
4	φ10*1.5-2	26	φ57-60*3-4
5	φ12*1.5-2	27	φ76*2.5
6	φ14*2-3	28	φ76*3
7	φ16*2-3	29	φ76*4-6
8	φ18*2-3	30	φ89*3-3.5
9	φ20*2-3	31	φ89*4-6
10	φ22*2-3.5	32	φ108*4-6
11	φ25*2	33	φ113-114*4-6
12	φ25*2.5-3	34	φ159*3
13	φ27*2	35	φ159*4-6
14	φ27*2.5-3	36	φ168*3

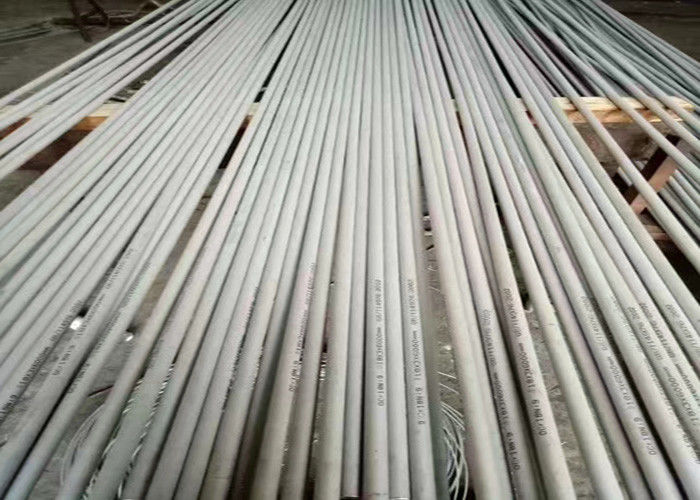

Our product show :

304 / 316L Seamless Stainless Steel Tubing Od 8mm / 80mm Flexible ASTM Standard 0
