Cold Roll Sanitary Stainless Steel Tube Austenitic Steel For High Pressure

Name: Cold Roll Sanitary Stainless Steel Tube Austenitic Steel For High Pressure
Brand: Wenzhou Zheheng Steel Industry Co.,Ltd
SKU: 25 میلی متر
Price: 3,750.00 USD
Availability: InStock

جزئیات محصول

محل منبع: چین

نام تجاری: zheheng

گواهی: ISO9001 PED

شماره مدل: 25 میلی متر

Document: بروشور محصول PDF

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش: قابل مذاکره

قیمت: قابل مذاکره

جزئیات بسته بندی: در بسته های با مواد ضد آب یا بسته بندی جعبه های چوبی

زمان تحویل: 30 روز

شرایط پرداخت: L/C ، T/T ، D/A ، D/P

قابلیت ارائه: 50 تن / 30 روز

بهترین قیمت رو بدست بیار

جزئیات محصول

توضیحات محصول

برجسته کردن:
                                                                                                                                                                                                                                                stainless steel boiler tubes,bending stainless steel tubing, bending stainless steel tubing


مواد:	فولاد آستنیتی	استاندارد:	ASTM A312
تایپ کنید:	بی درز	تکنیک:	رول سرد
بازرسی:	100%	برنامه:	مبدل

مواد:	فولاد آستنیتی
استاندارد:	ASTM A312
تایپ کنید:	بی درز
تکنیک:	رول سرد
بازرسی:	100%
برنامه:	مبدل

Cold Roll Sanitary Stainless Steel Tube Austenitic Steel For High Pressure

Austenitic Steel Sanitary water heat exchanger stainless steel coil tube for High pressure

High pressure stainless steel coil heat exchanger is used to raise the temperature of the fluid to prevent hydrate formation, reduce viscosity, and break down emulsions for efficient separation of oil ,gas and water, providing heat directly from adequate steam usually supplied by a steam generator.The heat exchanging efficiency of this kind of method is higher and can eliminate potential fire risk.
ASTM Standards Referenced Documents:
A262 Practices for Detecting Susceptibility to Intergranular
Attack in Austenitic Stainless Steels
A370 Test Methods and Definitions for Mechanical Testing
of Steel Products
A941 Terminology Relating to Steel, Stainless Steel, Related
Alloys, and Ferroalloys
A999/A999M Specification for General Requirements for
Alloy and Stainless Steel Pipe
A1016/A1016M Specification for General Requirements for
Ferritic Alloy Steel, Austenitic Alloy Steel, and Stainless
Steel Tubes
E112 Test Methods for Determining Average Grain Size
E381 Method of Macroetch Testing Steel Bars, Billets,
Blooms, and Forgings

chemical composition:

ASTM A213 / A213 M
Elements	304L(wt%)	316L (wt%)
(C) Carbon, max	0.035	0.035
(Mn) Manganese, max	2	2
(P) Phosphorus, max	0.045	0.045
(S) Sulfur, max	0.03	0.03
(Si) Silicon, max	1	1
(Ni) Nickel	8.0 - 12.0	10.0 - 14.0
(Cr) Chromium	18.0 - 20.0	16.0 - 18.0
(Mo) Molybdenum	N/A	2.0 - 3.0
(Fe) Iron	Bal.	Bal.
(Cu) Copper	N/A	N/A
(N) Nitrogen	N/A	N/A

Chemical Composition of Material	Material Composition	201	202	304	316	430
	C	≤0.15	≤0.15	≤0.08	≤0.08	≤0.12
	Si	≤1.00	≤1.00	≤1.00	≤1.00	≤1.00
	Mn	5.5-7.5	7.5-10	≤2.00	≤2.00	≤1.00
	P	≤0.06	≤0.06	≤0.045	≤0.045	≤0.040
	S	≤0.03	≤0.03	≤0.030	≤0.030	≤0.030
	Cr	16-18	17-19	18-20	16-18	16-18
	N	3.5-5.5	4-6	8-10.5	10-14
	Mo				2.0-3.0
Mechanical Property	Material Item		201	202	304	316
	Tensile Strength		≥535	≥520	≥520	≥520
	Yield Strength		≥245	≥205	≥205	≥205
	Extension		≥30%	≥30%	≥35%	≥35%
	Hardness (HV)		<253	<253	<200	<200

production range:

Austenitic Steel:	TP304,TP304L,TP304H,TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L…
Duplex Steel :	S32101,S32205,S31803,S32304,S32750, S32760 Others:TP405,TP409, TP410, TP430, TP439 ...
Russia Standard	08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б, 10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т, 12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т,
European Standard	1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571, 1.4438,1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501

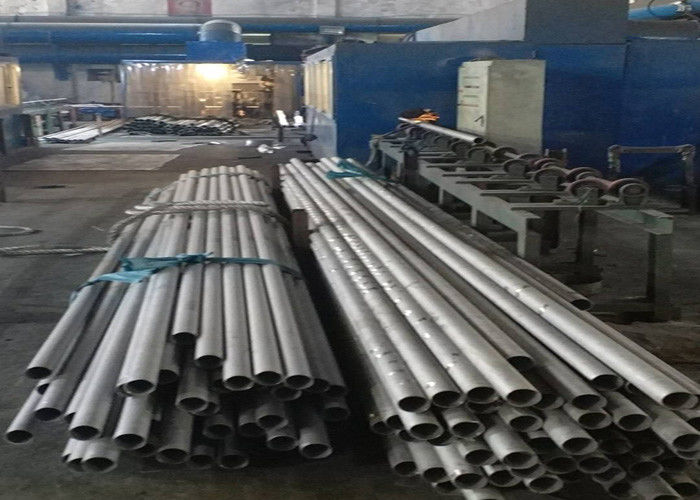

product show:

Cold Roll Sanitary Stainless Steel Tube Austenitic Steel For High Pressure 0
