Clean 1 Inch Stainless Steel Exhaust Tubing Heavy Wall For Prochemical Processing
Clean 1 Inch Stainless Steel Exhaust Tubing Heavy Wall For Prochemical Processing
zheheng steel is a one of supplier, exporter,manufacturer of stainless seamless steel tubing ,stainless steel seamless tubing with high pressure ,i inch stainless steel tubing, in inch BA seamless stainless steel tubing ,The most important is that we have very competitive price on the bright annealed, small diameter tubing / seamless stainless steel tubing
We can also supply small diameter tubing, bright annealed seamless steel tubing,which are widely used.
Product description :
Outer Diameter :OD 6mm-630mm or customized
Thickness : 0.4-30mm or customized
ModelNumber:201.202.301.302.304.304L.309S.310S.316.316L.316Ti.321.410.430.630.631.904L.2205.2507.2520 ect. Or Customized
Standard : GB, AISI, ASTM, ASME, EN, BS, DIN, JIS
Surface Black,Bright,2B,BA,NO.1,Hairline,Mirror
Application :Decoration, construction and upholstery, etc
Package :Each tube in a plastic bag with size label outside and pack in small bundles or according to customer request
Delivery Time : 5-7workdays for one FCL Or according to order list detail
1. Heat exahanger tube for petrochemical,chemical and ocean development
2. Industrial furnace and heater tubes
3. for gas turbine and prochemical processing
4. Condenser tubes,sulfuric and phosphoric acids tubes,API tubing
5. Construction and ornament
6. Acid production,waste incineration,FGD,paper processing industrial
The function of the automobile exhaust stainless steel tubing on the car body is to reduce the noise and reduce the life of the exhaust muffler system. The main material of the exhaust pipe is stainless steel. For a typical car, since the exhaust gas of the car leaves the engine at a high pressure, the noise generated may cause madness. At this time, the main muffler is the exhaust pipe of the car, and the muffler is installed inside the car. The device greatly reduces the noise of the car. The main working principle is to divert the airflow through multiple channels. These shunts only see each other colliding with each other, so that the flow velocity of the airflow is gradually reduced. This cycle is repeated, and finally the exhaust gas is discharged through the exhaust pipe of the automobile, so that the noise is reduced! Thereby achieving the effect of daily car noise reduction.
Product Description
| Product |
high clean 1inch BA seamless tubing stainless steel pipe in high pressure/ seamless stainless steel tubing |
| Material |
200 series: 201,202,202Cu,204Cu;
300 series: 301,303/Cu,304/L/H,304Cu,305,309/S,310/S,316/L/H/Ti,321/H,347/H,330;
400 series: 409/L,410,416/F,420/F,430,431,440C,441,444,446;
600 series: 13-8ph,15-5ph,17-4ph,17-7ph(630,631),660A/B/C/D;
Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS, S32760, 2304, LDX2101, LDX2404, LDX4404,904L;
Alloy : Alloy 20/28/31;
Hastelloy: Hastelloy B / B-2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N;
Haynes: Haynes 230/556/188;
Inconel: Inconel 100/600/601/602CA/617/625713/718738/X-750,Carpenter 20;
Incoloy: Incoloy 800/800H/800HT/825/925/926;
GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044;
Monel: Monel 400/K500;
Nitronic: Nitronic 40/50/60;
Nimonic: Nimonic 75/80A/90 ;
Others: 153Ma,254SMo,253Ma,654SMo,F15,Invar36,1J22,N4,N6 etc,
1.4057,1.4313,1.4362,1.4372,1.4378,1.4418,1.4482,1.4597,1.4615,1.4662,1.4669,
1.4913,1.4923 etc |
| |
|
Standard & Tolerance: ASTM A213,ASTM A269,EN10216-5 TC1,D4/T3
NDT: Eddy Current or Hydraulic Test
Heat Treatment: Bright Annealed
3.1Chemical Composition:3. Material2.Description:
| Grade |
C |
Si |
Mn |
P |
S |
Ni |
Cr |
Mo |
N |
| 201(1Cr17Mn6Ni5N) |
≤0.15 |
≤1.0 |
≤5.5 |
≤0.06 |
≤0.03 |
3.5-5.5 |
16.0-18.0 |
— |
≤0.25 |
| 202(1Cr18Mn8Ni5N) |
≤0.15 |
≤0.07 |
≤7.5 |
≤0.06 |
≤0.03 |
4.0-6.0 |
17.0-19.0 |
— |
≤0.25 |
| 304(0Cr18Ni9) |
≤0.08 |
≤0.07 |
≤2.0 |
≤0.04 |
≤0.03 |
8.0-11.0 |
18.0-20.0 |
— |
— |
| 304L(00Cr18Ni10) |
≤0.03 |
≤0.07 |
≤2.0 |
≤0.04 |
≤0.03 |
8.0-11.0 |
18.0-20.0 |
— |
— |
| 305 |
≤012 |
≤1.00 |
≤2.00 |
≤0.045 |
≤0.030 |
10.5-13.0 |
17.0-19.0 |
|
|
| 316(0Cr17Ni12Mo2) |
≤0.08 |
≤0.07 |
≤2.0 |
≤0.04 |
≤0.03 |
11.0-14.0 |
16.0-18.0 |
2.0-3.0 |
— |
| 316L(0Cr17Ni14Mo2) |
≤0.03 |
≤0.07 |
≤2.0 |
≤0.04 |
≤0.03 |
11.0-14.0 |
16.0-18.0 |
2.0-3.0 |
— |
| 309s |
≤0.08 |
≤1.00 |
≤2.0 |
≤0.045 |
≤0.03 |
12.00-15.00 |
22.00-24.00 |
|
|
| 310s |
≤0.08 |
≤1.50 |
≤2.0 |
≤0.045 |
≤0.03 |
19.00-22.00 |
24.00-26.00 |
|
|
| 317l |
≤0.03 |
≤1.00 |
≤2.0 |
≤0.045 |
≤0.03 |
11.0-15.0 |
18.0-20.0 |
3.0-4.0 |
|
| 321 |
≤0.08 |
≤1.0 |
≤2.0 |
≤0.04 |
≤0.03 |
9.0-12.0 |
17.0-19.0 |
|
Ti≥5xC |
| 409 |
≤0.08 |
≤1.0 |
≤1.0 |
≤0.04 |
≤0.03 |
≤0.5 |
10.5-11.7 |
|
Ti6xC%≤0.70 |
| 409L |
≤0.03 |
≤1.0 |
≤1.0 |
≤0.04 |
≤0.03 |
0.5 |
10.5-11.7 |
|
Ti8xC%≤0.70 |
| 430 |
≤0.12 |
≤1.0 |
≤1.0 |
≤0.04 |
≤0.03 |
|
16.0-18.0 |
|
|
| SS329J4L |
≤0.03 |
≤1.0 |
≤1.5 |
≤0.04 |
≤0.03 |
5.50-7.50 |
24.00-26.00 |
2.50-3.50 |
|
Chemical composition complementary:
Cast analysis
The cast analysis reported by the steel producer shall apply and conform to the requirements When welding tubes produced in accordance with this Part of this EN 10216, account should be taken of the fact that the behaviour of the steel during and after welding is dependent not only on the steel, but also on the applied heat treatment and the conditions of preparing for and carrying out the welding.

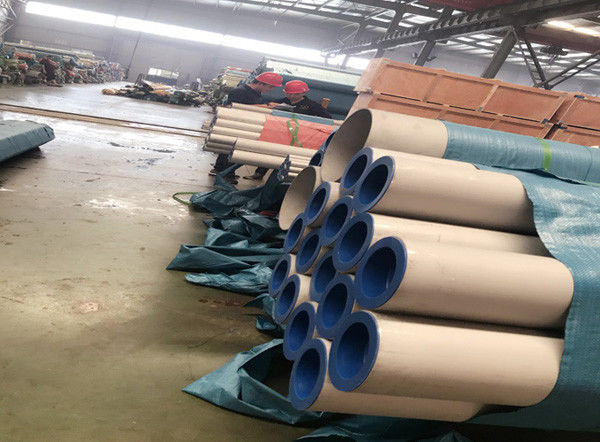

seamless stainless steel tubing show:
