N08800 / 1.4876 Nickel Alloy Pipe , A240 / B409 Standard Alloy 800h Pipe Weleded
Alloy 800 / N08800 /1.4876 / X10NiCrAlTi32-20 incoloy Nickel Alloy Pipe / A240 / B409 / A358
specialized in stainless seamless steel pipes & fittings.There are various kinds of materials:Alloy 800,800H,800HT,600,C276,601,625,825,Alloy 22,Alloy C4ect. Or Customized, we could produce as customers' different requirements and according to the standards such as ASTM A240, B409 / A358,B514, B515 ,B168 / B516, B517,B575 / B619, B626,B168,ect.
description:
ITEM: Alloy 800 / N08800 /1.4876 / X10NiCrAlTi32-20 Nickel Alloy Pipe / A240 / B409 / A358
Brand: RONSCO,BAOSTEEL, JISCO, TISCO, etc.
Material: Alloy 800,800H,800HT,600,C276,601,625,825,Alloy 22,Alloy C4ect. Or Customized
Standard: GB, AISI, ASTM, ASME, EN, BS, DIN, JIS
Size: ANSI /ASME size is under,other standard of size is for ready choice,O.D.:0.23''to 48''(5.8-1219mm)W.T.:0.04''to 2''(1.0-50.8mm)
Length: Max.18 Meter,NPS 1/8''-48'' Schedule:5/5S,10/10S,20/20S,40/40S,80/80S,120/120S,160/160S according to ANSI B36.19/36.10
Surface: Satin Finish(180#.240#.320#).,Bright Finish(400#,600#,mirror),Mill Finish(2B),Hairline-Finish(HL/Brushed),Ti-gold, Glossy matt,dull and so on.
Application: Decoration, construction and upholstery, etc
Complementary description:
| Package: |
Each tube in a plastic bag with size label outside and pack in small bundles or according to customer request |
| Lead Time: |
7-10days for one FCL Or according to order list detail |
| Payment: |
A: 100% T/T advance. ( For small order.) B: 30% T/T and balance against copy of documents.
C: 30% T/T advance, balance L/C at sight D: 30% T/T , balance L/C usance
E: 100% L/C usance. F: 100% L/C at sight. |
| Sample: |
we could offer the sample for free charge but do not pay the cost of freight. |
Incoloy 800 Chemical composition:
| Grade |
|
Ni |
Cr |
Fe |
C |
Mn |
Si |
S |
P |
Cu |
Al |
Ti |
| |
| % |
| 800 |
Min |
30 |
19 |
Bal |
|
|
|
|
|
|
0.15 |
0.15 |
| Max |
35 |
23 |
0.1 |
1.5 |
1 |
0.015 |
0.03 |
0.75 |
0.6 |
0.6 |
Incoloy 800 Pysical properties:
| Alloy state |
Tensile strength |
Yield strength |
Elongation |
| Rm N/mm² |
R P0. 2N/mm² |
A 5 % |
| 800 |
520 |
205 |
30 |
Heat Treatment Assurance
A full-automatic natural gas furnace with 24 meters in length.The real temperature tolerance could be within 10℃.
1 .The Organic chemical process parts contains chloride, especially in the use of acid chloride catalyst.
2. The digester and bleacherin the use of paper pulp and paper making industry.
3. Absorption tower, re-heater,gas import board, fan, blender, fair water fin, flue and so on for using in flue gas desulfurization system.
4. The equipment and parts in the use of acidic gas environments.
5. Acetic acid and anhydride reaction generator
6. Sulfur acid cooling

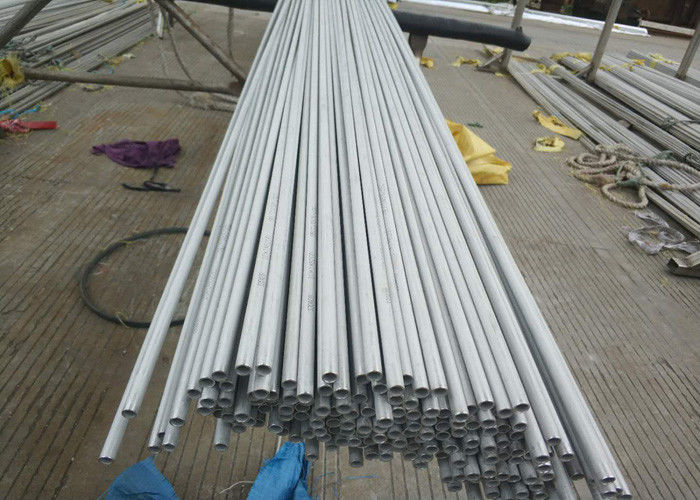

Product show:
